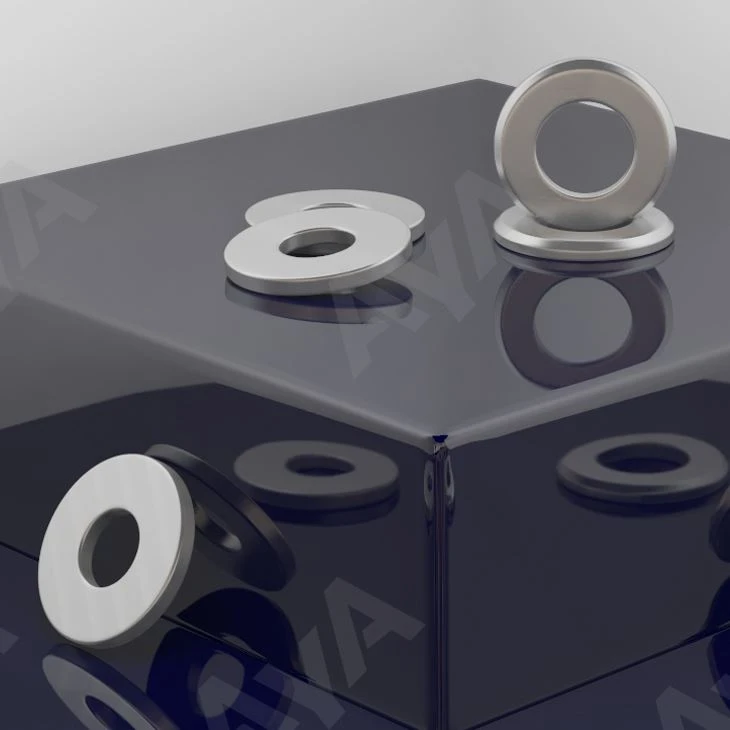

Stainless Steel flat Washer

Tulaga: Don 125-1
Oloa: spineless steel mafolafola papala
Mea: Stainless Steel
Vasega a le Vaega: 140hv (HV140-250) / 200hv (HV200-250)
Lapoa: Φ1.7,Φ1.8,Φ2.2,Φ2.5,Φ2.7,Φ2.8,Φ3.2,Φ3.7,Φ4.3,Φ5.3,Φ6.4,Φ7.4,Φ8.4,Φ1 0.5,Φ13,Φ15,Φ17,Φ19,Φ21,Φ23,Φ25,Φ27,Φ28,Φ29,Φ31,Φ33,Φ34,Φ36,Φ37,Φ39, Φ40,Φ41,Φ43,Φ46,Φ50,Φ52,Φ54,Φ57,Φ58,Φ60,Φ62,Φ66,Φ70,Φ74,Φ78,Φ82,Φ87 ,Φ93,Φ98,Φ104,Φ109,Φ114,Φ119,Φ124,Φ129,Φ134,Φ139,Φ144,Φ149,Φ155,Φ165
Faʻaiʻu: Faʻasalalau, Faʻateʻa, Faʻatulaga
Pepa: Faiga A / Faia le Badroves Parwanitions: Don 125-2, Di 1052, Iso 887, ASE B 18.22.1, ASSI B 1258
Moq: 1000kgs
Taitai Taimi: 30 i le 60 aso

Auina atu le Suʻega

Faatomuaga Oloa

AYA CASTENTERS (HEBEI) Co., Ltd. O se tasi o le sili ona poto masani tagata gaosi oloa ma oloa o le shinsulled steel mafolafola mafolafola i Saina. Faʻamolemole lagona le saʻoloto e faʻatau ai le maualuga maualuga o le staness stal wal whel na faia i Saina iinei mai le matou fale gaosi. Mo le faʻatalanoaga tau, faʻafesoʻotaʻi.

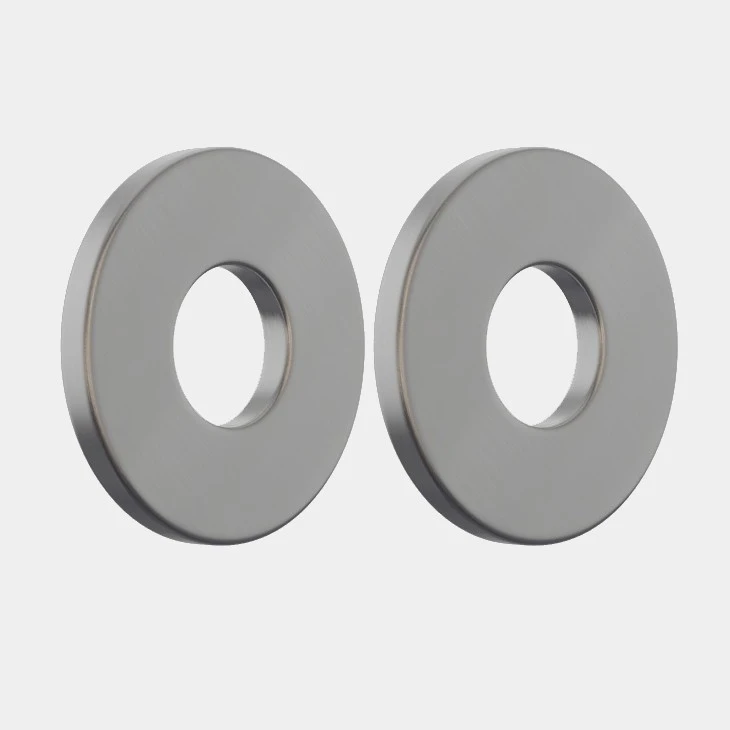

Stainless Steel Flat Washers-AYA

I le avea ai o se mea e aofia ai le lalolagi o le faʻapipiʻiina o fofo, o le tautua a le AYA e latalata i tagata faʻatau e pei o oloa a Aya. Mai le faamatalaina o mea e tatau ona mulimuli ai {{1} [}} Ia vave mai se tautua e mafai ona fesoasoani i tagata faigaluega e foia ai ni faʻafitauli nisties.

Faamatalaga faamatalaga

Igoa o oloa	Stainless Steel mafolafola
Meafaitino	Apa siliva
Tulaga	Dis 125-1
Vasega o meatotino	140hv (HV140-250) / 200hv (HV200-250)
Fomu	Fomu se / pepa b
Lapoa	Φ1.7,Φ1.8,Φ2.2,Φ2.5,Φ2.7,Φ2.8,Φ3.2,Φ3.7,Φ4.3,Φ5.3,Φ6.4,Φ7.4,Φ8.4,Φ10.5,Φ13,Φ15,Φ17,Φ19,Φ21,Φ23,Φ25,Φ27,Φ28,Φ29,Φ31,Φ33,Φ34,Φ36,Φ37,Φ39,Φ40,Φ41,Φ43,Φ46,Φ50,Φ52,Φ54,Φ57,Φ58,Φ60,Φ62,Φ66,Φ70,Φ74,Φ78,Φ82,Φ87,Φ93,Φ98,Φ104,Φ109,Φ114,Φ119,Φ124,Φ129,Φ134,Φ139,Φ144,Φ149,Φ155,Φ165
Faauma	Mafaufauga, faʻaputuputu, faʻamalositino
Le isi tulaga faatonuina	Don 125-2, Di 1052, Iso 887, ISO 7089, ISO 8738, assa b 18.22.1, ASSI B 1258

Fua Faatatau Laulau

Stainless Steel Flat Washers-2D

Lapoa		Φ1.7	Φ1.8	Φ2.2	Φ2.5	Φ2.7	Φ2.8	Φ3.2	Φ3.7	Φ4.3	Φ5.3	Φ6.4	Φ7.4	Φ8.4	Φ10.5	Φ13	Φ15
M	Mo le tele o le tele	M1.6	M1.7	M2	M2.3	M2.5	M2.6	M3	M3.5	M4	M5	M6	M7	M8	M10	M12	M14
d	min=NOWAL LE SILI	1.7	1.8	2.2	2.5	2.7	2.8	3.2	3.7	4.3	5.3	6.4	7.4	8.4	10.5	13	15
d	max	1.84	1.94	2.34	2.64	2.84	2.94	3.38	3.88	4.48	5.48	6.62	7.62	8.62	10.77	13.27	15.27
dc	Max=Tanoa tele	4	4.5	5	6	6	7	7	8	9	10	12	14	16	20	24	28
dc	min	3.7	4.2	4.7	5.7	5.7	6.64	6.64	7.64	8.64	9.64	11.57	13.57	15.57	19.48	23.48	27.48
h	Numera tele	0.3	0.3	0.3	0.5	0.5	0.5	0.5	0.5	0.8	1	1.6	1.6	1.6	2	2.5	2.5
	max	0.35	0.35	0.35	0.55	0.55	0.55	0.55	0.55	0.9	1.1	1.8	1.8	1.8	2.2	2.7	2.7
	min	0.25	0.25	0.25	0.45	0.45	0.45	0.45	0.45	0.7	0.9	1.4	1.4	1.4	1.8	2.3	2.3
i le 1000 iunite ≈ kg		0.024	0.031	0.037	0.092	0.088	0.127	0.119	0.155	0.308	0.443	1.02	1.39	1.83	3.57	6.27	8.62

Lapoa		Φ17	Φ19	Φ21	Φ23	Φ25	Φ27	Φ28	Φ29	Φ31	Φ33	Φ34	Φ36	Φ37	Φ39	Φ40	Φ41
M	Mo le tele o le tele	M16	M18	M20	M22	M24	M26	M27	M28	M30	M32	M33	M35	M36	M38	M39	M40
d	min=NOWAL LE SILI	17	19	21	23	25	27	28	29	31	33	34	36	37	39	40	41
d	max	17.27	19.33	21.33	23.33	25.33	27.33	28.33	29.33	31.39	33.62	34.62	36.62	37.62	39.62	40.62	41.62
dc	Max=Tanoa tele	30	34	37	39	44	50	50	50	56	60	60	66	66	72	72	72
dc	min	29.48	33.38	36.38	38.38	43.38	49.38	49.38	49.38	55.26	58.8	58.8	64.8	64.8	70.8	70.8	70.8
h	Numera tele	3	3	3	3	4	4	4	4	4	5	5	5	5	6	6	6
	max	3.3	3.3	3.3	3.3	4.3	4.3	4.3	4.3	4.3	5.6	5.6	5.6	5.6	6.6	6.6	6.6
	min	2.7	2.7	2.7	2.7	3.7	3.7	3.7	3.7	3.7	4.4	4.4	4.4	4.4	5.4	5.4	5.4
i le 1000 iunite ≈ kg		11.3	14.7	17.2	18.3	32.3	43.7	42.3	40.9	53.6	77.4	75.3	94.3	92.1	136	133	130

Lapoa		Φ43	Φ46	Φ50	Φ52	Φ54	Φ57	Φ58	Φ60	Φ62	Φ66	Φ70	Φ74	Φ78	Φ82	Φ87	Φ93
M	Mo le tele o le tele	M42	M45	M48	M50	M52	M55	M56	M58	M60	M64	M68	M72	M76	M80	M85	M90
d	min=NOWAL LE SILI	43	46	50	52	54	57	58	60	62	66	70	74	78	82	87	93
d	max	43.62	46.62	50.62	52.74	54.74	57.74	58.74	60.74	62.74	66.74	70.74	74.74	78.74	82.87	87.87	93.87
dc	Max=Tanoa tele	78	85	92	92	98	105	105	110	110	115	120	125	135	140	145	160
dc	min	76.8	83.6	90.6	90.6	96.6	103.6	103.6	108.6	108.6	113.6	118.6	123.4	133.4	138.4	143.4	158.4
h	Numera tele	7	7	8	8	8	9	9	9	9	9	10	10	10	12	12	12
	max	8	8	9	9	9	10	10	10	10	10	11	11	11	13.2	13.2	13.2
	min	6	6	7	7	7	8	8	8	8	8	9	9	9	10.8	10.8	10.8
i le 1000 iunite ≈ kg		183	220	294	284	330	431	425	472	458	492	586	626	749	953	996	1250

Lapoa		Φ98	Φ104	Φ109	Φ114	Φ119	Φ124	Φ129	Φ134	Φ139	Φ144	Φ149	Φ155	Φ165
M	Mo le tele o le tele	M95	M100	M105	M110	M115	M120	M125	M130	M135	M140	M145	M150	M160
d	min=NOWAL LE SILI	98	104	109	114	119	124	129	134	139	144	149	155	165
d	max	98.87	104.87	109.87	114.87	119.87	125	130	135	140	145	150	156	166
dc	Max=Tanoa tele	165	175	180	185	200	210	220	220	230	240	250	250	250
dc	min	163.4	173.4	178.4	183.15	198.15*	208.15	218.15	218.15	228.15	238.15	248.15	248.15	248.15
h	Numera tele	12	14	14	14	14	16	16	16	16	18	18	18	18
	max	13.2	15.2	15.2	15.2	15.2	17.2	17.2	17.2	17.2	19.2	19.2	19.2	19.2
	min	10.8	12.8	12.8	12.8	12.8	14.8	14.8	14.8	14.8	16.8	16.8	16.8	16.8
i le 1000 iunite ≈ kg		1300	1710	1770	1830	2230	2830	3130	3000	3310	4090	4470	4270	3910
①, I le tusi tusi, 11119 e fetaui ma le DC Accounts Taua o le 188.15, ae o le foliga mai e tatau ona 1.8 mm, o le mea moni, o le mea moni, o le mea moni, o le mea moni, o le mea moni, o le mea moni, o le mea moni, o le mea moni, o le mea moni, o le mea moni, o le mea moni, o le mea moni, o le mea moni, o le mea moni, o le mea moni, o le mea moni e maualalo le aoga o le 1. (In DIN 522, when h is less than 4 and the product grade is Class A, the dimensional tolerance of d2 is h15, and the corresponding deviation is 1.85 mm when dc is 200 mm). ②, Mea: 1）Steel, faigata vasega 140hv, faigata HV140-250;Vaaiga Maloloina Vasega 200hv, faigata HV200-250; 2）Stainless Steel, Hardent vasega 140hv, faigata HV140-250;Vaaiga Maloloina Vasega 200hv, faigata HV200-250;Mea (Steel Group) A2 ma A4, F1, C1 ma C4 3）O Herows e mafai ona faia i le le - Faruar Caples po o isi mea, e tusa ma maliega 4）Mo le e le sili atu 0,5 mm, o le faigata o le hV 2 ma mo le sili atu 0,5 mm, HV 10.

Faamatalaga oloa

Stainless Steel Flat Washers-detail

Oloa Lelei

Stainless Steel Flat Washers-advantages

Lelei o le shinsuble steel mafolafola papala

1. Maualuga - lelei le lelei staness staness standed counter ma fusi punou i le ogatotonu, avanoa i le tele o ituaiga ma mafiafia.

2. E masani ona faʻaaoga e puipuia ai le laualuga mai le faʻaleagaina i le taimi o faʻapipiʻiina.

3. O nei mea mafolafola e siʻitia ai le sikulu - le tele o itu, faʻateleina le malosi tele, ma puipuia le magoto o le afu.

4. O le faʻaseʻe spingless steel e maua ai le afaina o le afaina ma sili atu le malosi.

5. Aya o le sili ona lauiloa mo le sapalaiina o mea faʻapipiʻi faʻapipiʻi fofo fofo.

6. E leai se maa e te leʻi faʻauluina i le sailia o fofo i le faʻafitauli o le tagata faatau. Aya maua le tagata faʻatau ma se mea sili ona lelei ma tumau faʻamau fofo.
